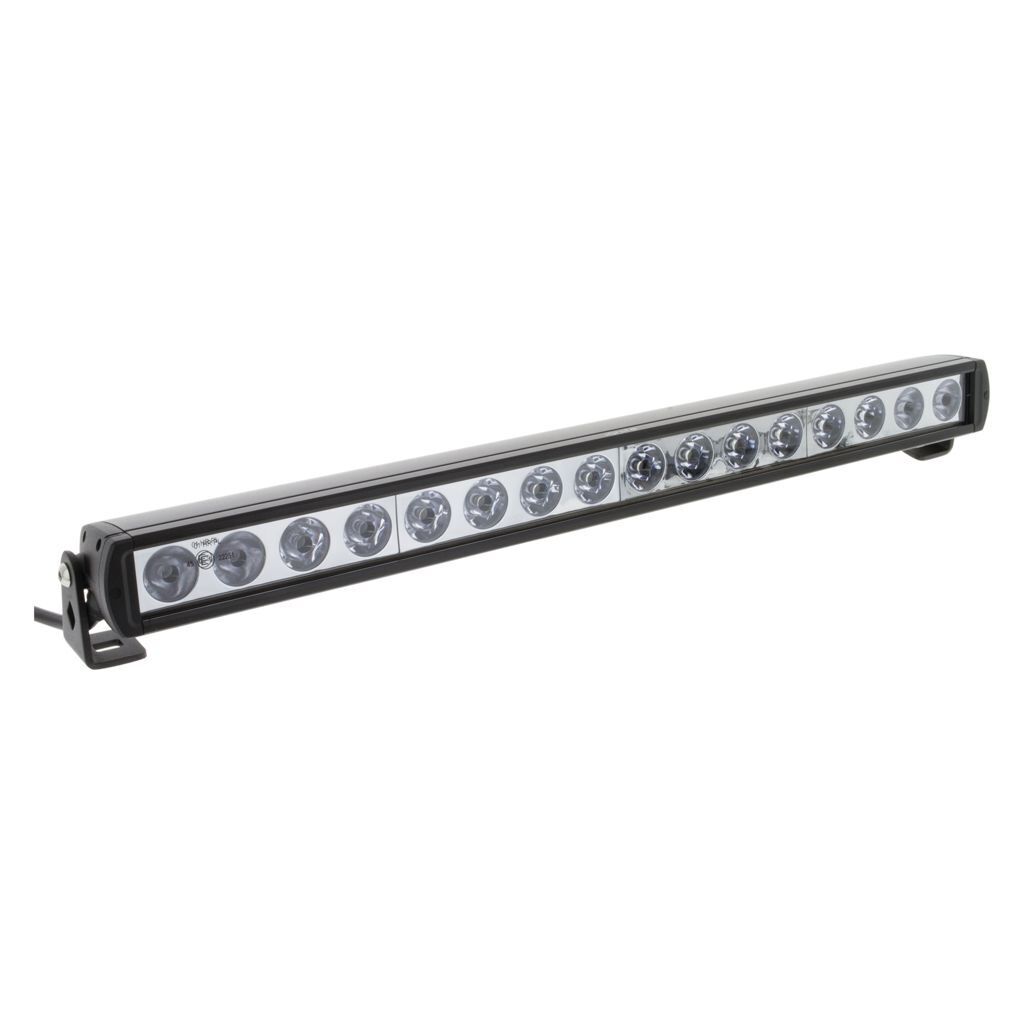

Ignite SX Series Single Row LED Driving Lamp Lightbar 9 - 36 Volt 160 Watt
Proprietary Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens
Light Transmittance >95%
Integrated Electronic Thermal Management (ETM)
Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
Dual Mounting Systems; Bottom Mount Brackets and Side Mount Brackets
Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
500mm Lead with 2 Pin Deutsch Plug
Chrome Fascia
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant
50,000 Hours LED Lifespan
ECE R112, R10 and CE Approved
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty
.
Spare Parts:-
Combined Spot (Pencil) and Flood (Spread) Beam Patterns 15 Degrees, 35 Degrees
IBB50MM Round Bullbar Mounting Bracket 50mm
IBB64MM Round Bullbar Mounting Bracket 64mm
IBB76MM Round Bullbar Mounting Bracket 76mm
IAS40MM 40mm Spacer Mounting Bracket
IBB01 Back Mounting Bracket
IBB02 Spare Bottom Mounting Bracket
16 x 10 Watt High Intensity Osram LED's
16,560 Raw Lumens and 6,000K
1 Lux @ 531m and 281,961cd Peak Beam Intensity
Current Draw: 10.3amp @ 12 Volt and 5.2amp @ 24 Volt

Beam Type Combined
Depth (mm) 70
Height (mm) 56
Rows Single
Mount Other
No. of LED Other
Series Other
Type LED
Voltage Multivolt
Watts Other
Width (mm) 670
SKU ILB670CC
Barcode # 9323379444796
Brand Ignite
