Ignite 20" Dual Row Laser LED Driving Lamp Lightbar 9 - 36 Volt 136 Watt
Polycarbonate Side Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens
Light Transmittance >95%
Integrated Electronic Thermal Management (ETM)
Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink
and Pressure Equalising Vent
Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
Combined Laser and LED Illumination Technology
500mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant to 15G
Anti Rust, corrosion and freezing resistance
50,000 Hours LED Lifespan
ECE R112, R10 and CE Approved
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty
8° Laser Pencil Beam and 20° LED Flood Beam providing a combined Combo Beam pattern
Weight: _ _ _g
24 x 4 Watt High Intensity LP LED's and 2 x 20 Watt High Intensity Osram Laser LED's
11,500 Raw and 9,800 Effective Lumens and 6,000K
1 Lux @ 742m and 551,000 cd Peak Beam Intensity
Current Draw: 9.8amp @ 12 Volt and 4.8amp @ 24 Volt

Beam Type Combined
Depth (mm) 57
Height (mm) 65
Rows Double
Mount Other
No. of LED 24
Series Other
Type LED
Voltage Multivolt
Watts Other

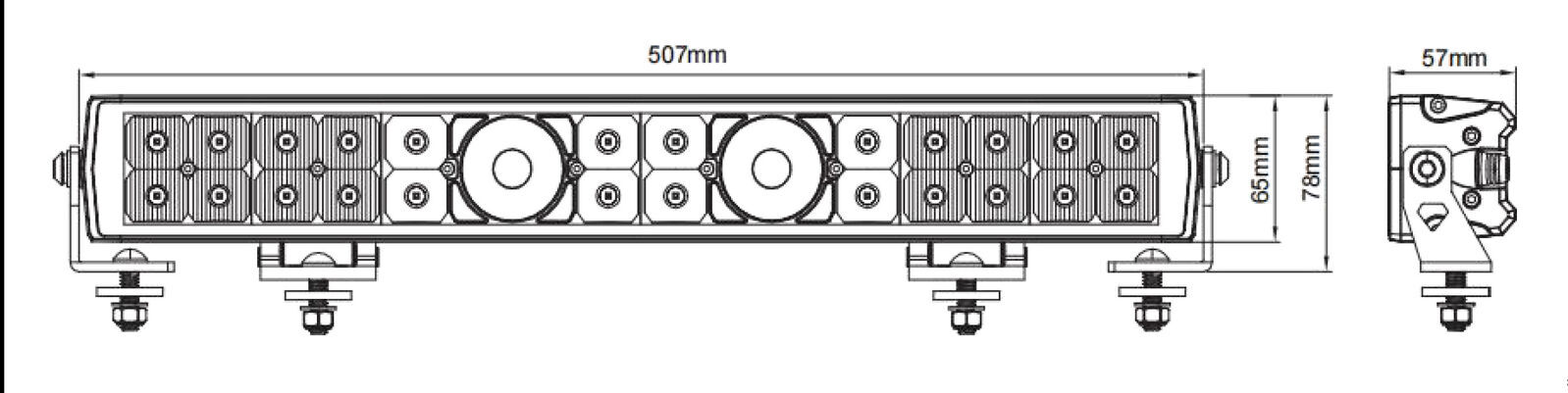

Width (mm) 507
SKU ILLB2404
Barcode # 9323327947034
Brand Ignite
