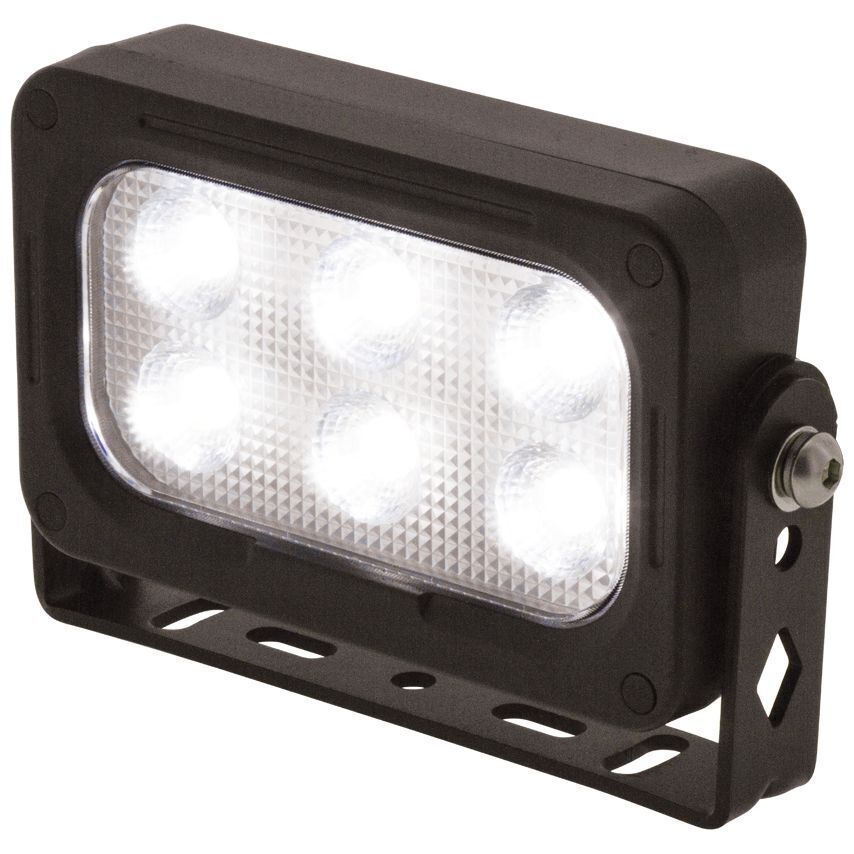

Ignite 6.2" Rectangular LED Worklamp 9 - 48 Volt 30 Watt
Light Transmittance >95%
Integrated Electronic Thermal Management (ETM)
Black Anondised Polyester Powder Coated Die-Cast Aluminium Alloy Housing (ADC12) with integrated
Extruded 6061 Aluminium Heat-Sink and Pressure Equalising Vent
Housing is angled at 8° downward for surface mount applications
Dual Mounting Systems; Flush Mount or provided with a Stainless Steel Single Bolt Mount Bracket
and Stainless Steel Mounting Hardware
45° Flood (Spread) Beam Pattern
300mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant
50,000 Hours LED Lifespan
ECE R10, R12, R7 CE Approved and EMC Compliant, CISPR 25 Class 4 Certified
IP68 Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty
6 x 5 Watt High Intensity CREE LED's
2,700 Raw Lumens, 2,485 Effective Lumens and 6,500K
1 Lux @ 81m and 6,561cd Peak Beam Intensity
Current Draw: 1.8amp @ 12 Volt and 0.9amp @ 24 Volt
Patented Multi-Surface Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens

Beam Type Flood
Depth (mm) 50
Height (mm) 99
Mount Other
No. of LED 6
Series Other
Shape Rectangular
Type LED
Voltage Multivolt
Watts 30W
Width (mm) 160
SKU IWL605BF
Barcode # 9323327943203
Brand Ignite
