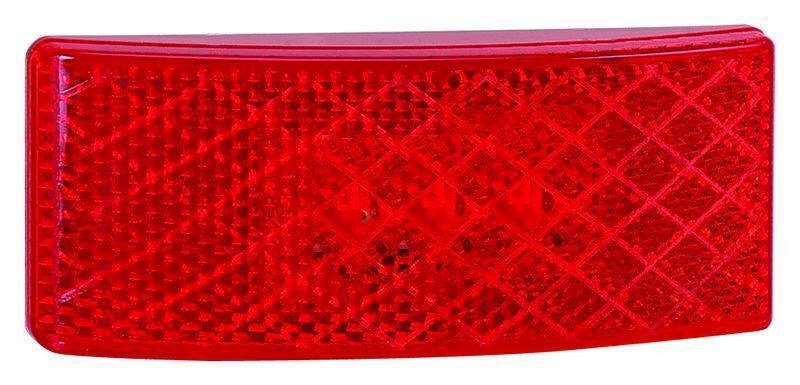

Ignite LED Rear End Position Outline Marker Reflector Lamp 12/24 Volt
400mm Sheathed with 2 wires
10,000 Hours LED Lifespan
Fully encapsulated circuitry
Sealed against Dust and Moisture
ECE 02R1 CRN 11294 Approved - Rear Position Lamp
ECE 021A CRN 11294 Approved - Rear Reflector
Refer to ADR 13/00 for mounting instructions
Red Illumination
IP67 Rating
Blister Qty: 1
5 Year Warranty
.
Drill a 10mm Hole, remove protective film from 3M™ Tape, pull cable through the hole, push
serrated plug into the hole and press firmly on lamp
Easy to fit with no tools required, saving on installation time
Low profile compact design
.
ISL433A is the matching Amber Side Marker Lamp
3 x High Intensity White LED's
ISL433W is the matching White Front End Outline Marker Lamp
Current Draw: 0.01amp at 12 Volt, 0.01amp at 24 Volt
Red Hardened Acrylic Lens with unique Hexagonal pattern and Built-in Reflex Reflector
Red ABS Plastic Housing with 10mm Serrated Plug
Surface Mount with 3M™ Tape (Supplied) "Push and Stick" mounting system

Shop all signal lighting

Colour Red
Depth (mm) 13
Height (mm) 38
Mount Surface
No. of LED 3
Shape Rectangular
Type LED
Voltage 12/24V
Width (mm) 100
SKU ISL433R
Barcode # 9323327946280
Brand Ignite
