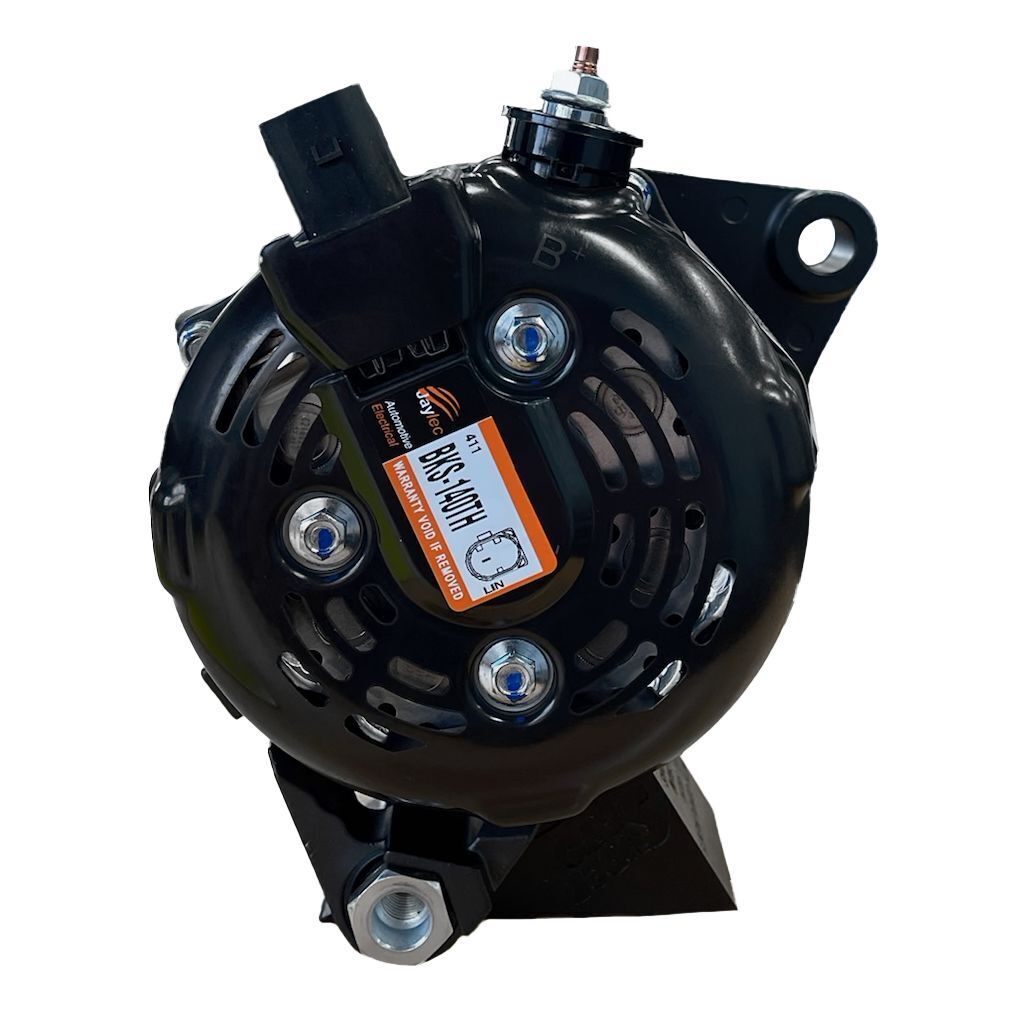

Black Series Toyota Hilux GUN Series 12V 150A Alternator

Upgrade your rig by replacing the standard 80A & 100A alternator with one of Black Series' 150A units. This alternator is a direct replacement, see notes below.***  Please note a battery positive wiring upgrade is needed for this alternator. ***

Vehicle Compatibility:

  • Toyota Hilux 1GDFTV 2.8L 2015- GUN126R
  • Toyota Hilux 1GDFTV 2.8L 2015- GUN123
  • Toyota Hilux 1GDFTV 2.8L 2015- GUN135
  • Toyota Hilux 1GDFTV 2.8L 2015- GUN126
  • Toyota Hilux 1GDFTV 2.8L 2015- GUN136

Important Notes:

  • Side entry regulator.
  • This alternator is fitted with OE Denso Stator, Rotor, Regulator, Rectifier and Clutch Pulley.
  • ***  Please note a battery positive wiring upgrade is needed for this alternator. ***



Voltage 12V
Amperage 150A Cold, 140A Hot
Mount Leg ID 52mm
C-C Mounts 160mm
Hole ID Top 12mm
Hole ID Bottom 11mm, M10
Shaft Size 17mm
Pulley Type 7PV, Clutch
Pulley Grooves 7
Pulley Diameter 65mm
Regulator Type Internal
Connections Plug No.   EP85-2
Terminals B+, LIN
Excitation External
Ground Negative
SKU BKS-140TH
Barcode # 9356659202601
Brand Black Series
